1260C 1430C Ceramic Fiber Paper

Category： Ceramic Fiber Paper
Mould: blanket,board,module,paper,textile
Color:White
Working Temperature；1100-1430℃
Package: woven bag & carton box
INQUIRY EMAIL

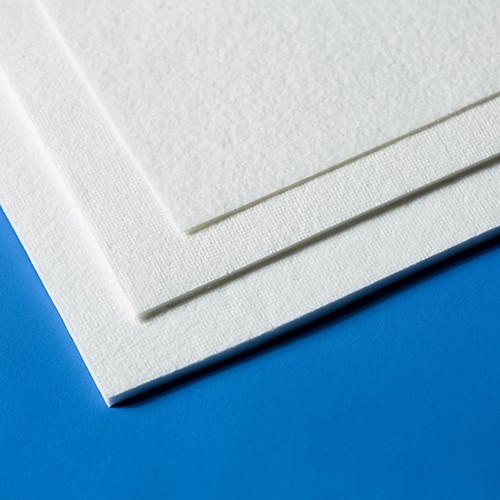

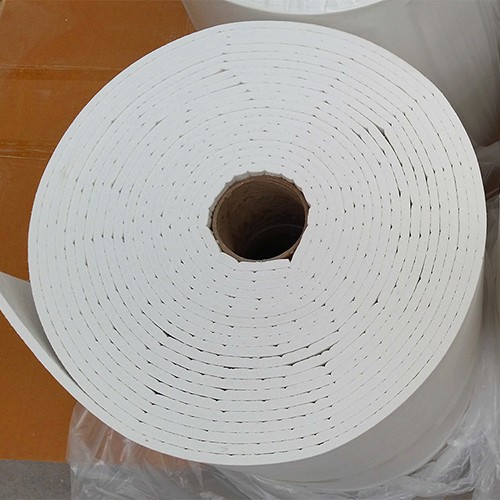

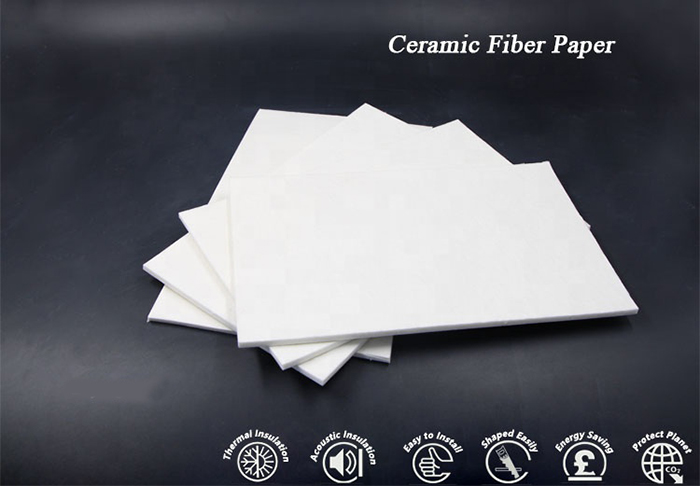

Leadsun ceramic fiber paper, is a lightweight refractory material processed from a blend of high purity alumina-silica fibers into a highly flexible, uniform sheet.

Ceramic fiber paper, has low shrinkage, good handling strength, and low thermal conductivity. it contains a small amount of organic binder for processing which makes it flexible, yet reduces off-gassing and odour during use. our product has a highly uniform structure due to its controlled basis weight and thickness, assuring homoaeneous thermal conductivity and a clean, smooth surface ideal for gasketing or sealing.

Ceramic fiber paper is completely free to asbestos and is designed to be an economic replacement for asbestos paper in most applications.

Grade		Standard	High Pure		High Aluminium	Zirconium
Max. Temperature (C)		1050	1150		1260	1430
Shrinkage on Heating (%)		800C×24h≤-3	1000C×24h≤-3		1280C×24h≤-3	1400C×24h≤-3
Organic Content (%)		≤5	≤5		≤5	≤5
Thermal conductivity by mean temp. (W/m.k.) (250kg/m3)	200℃	0.055～0.065			0.060～0.070
	400℃	0.110～0.120			0.105～0.125
	600℃	0.160～0.170			0.170～0.180
Chemical Composition (%)	AL2O3	43		47	55	38
	SiO2	53		51	44	44
	Fe2O3 + Ti2O3	≤1.2		≤0.3	≤0.3	≤0.2
	CaO + MgO	≤0.3		≤0.3	≤0.3	≤0.2
	NaO + KO2	≤0.5		≤0.3	≤0.3	≤0.2
Density (kg/m3)		170~230
