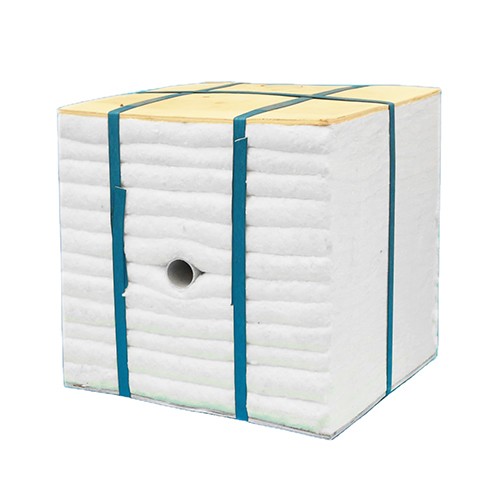

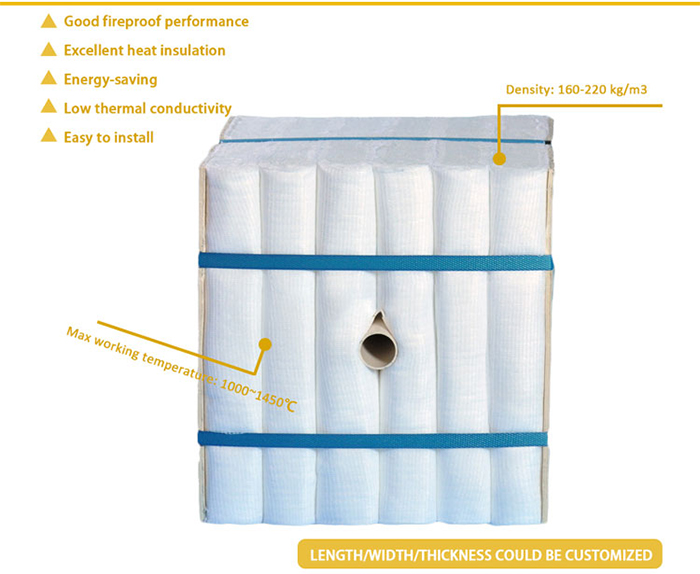

Leadsun ceramic fiber modules have the highest insulating value achievable in a ceramic fiber. Each module is a continuous folded blanket under compression. The individual sheet is allowed.
Module linings prevent heat loss, increasing the furnace productivity and reducing maintenance costs.
Description |
STD MODULE |
HP MODULE |
HA MODULE |
HZ MODULE |
Classification Temperature (℃ ) |
1260 |
1260 |
1350 |
1430 |
Chemical Composition (%) |
||||
Al2O3 |
≥43 |
≥44 |
≥52 |
≥35 |
SiO2 |
≥54 |
≥55 |
≥47 |
≥49 |
ZrO2 |
- |
- |
- |
≥15 |
Color |
White |
White |
White |
White |
Density (kg/m³) |
160-220 |
160-220 |
160-220 |
160-220 |
Permanent Linear Shrinkage (%) |
1000℃ x 24h ≤2.5 |
1100℃ x 24h ≤2.5 |
1200℃ x 24h ≤3.0 |
1350℃ x 24h ≤3.0 |
Thermal Conductivity (W/m·K) |
||||
400℃ |
0.10 |
0.10 |
0.10 |
0.10 |
600℃ |
0.18 |
0.17 |
0.16 |
0.15 |
800℃ |
0.20 |
0.20 |
0.20 |
0.19 |
1000℃ |
0.27 |
0.26 |
0.26 |
0.26 |
1. Fast and easy installation
2. Lower heat storage and fuel costs
3. This design creates a very light lining, less steel required

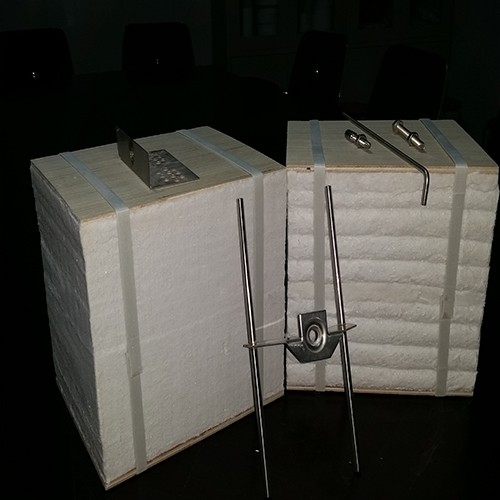

4. Several anchor systems
